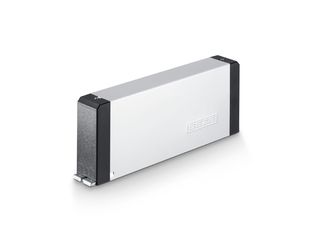

E 212 230 V Electric linear drive for automation of fanlight openers

  • Cost-effective and simple motorised solution for activating several scissors
  • Can be integrated perfectly into the façade design thanks to its slim and discreet look
  • Opening width variably adjustable over stroke length and can be adjusted as necessary
  • Power cut-off and integrated limit switch as well as stroke are adjustable
  • Completely pre-mounted assembly groups facilitate installation
Contact us

E 212 230 V

Application Areas

  • Automation of GEZE OL 90 N, OL 95 N and OL 320 fanlight openers
  • Natural ventilation in the façade area
  • Inward-opening bottom-hung leaves
  • Installation on wooden, PVC or metal windows
  • Frame installation

Technical data

E 212 230 V
Dimensions 210 x 80 x 33 mm
Space needed on frame (min.) Necessary space should be determined individually
Space requirement on leaf (min.) Necessary space should be determined individually
Compressive force 1500 N
Tensile force 1500 N
Operating voltage 230 V AC
Current consumption 0.2 A
Power consumption 50 W
Duty rating 25 %
Min. core cross section 1.5 mm²
Service temperature -20 - 60 °C
IP rating IP42
Type of stroke shortening Mechanical
End position cut-off extended Limit switches
End position cut-off retracted Limit switches
Overload cut-off Yes
Bottom-hung window INWARD-opening frame installation Yes

Downloads

Variants & Accessories

Synchronising unit E 212 R + E 205
Accessories

Synchronising unit E 212 R1 230 V

Synchronising unit for commissioning 230 V drives

Product details
Connecting unit
Accessories

Connecting unit E 212

To couple the E 212 with the OL 320 scissors

Product details
Safety scissors no. 35
Accessories

Safety scissors no. 35

For protection of bottom-hung leaves

Product details
