Slimdrive SL-RC2 Automatic linear sliding door system with burglar resistance in accordance with resistance class RC2

Slimdrive SL RC 2 Single and double leaf sliding door systems. Inside and exterior doors with the highest safety demands. Certified burglar resistance according to resistance class RC 2. The RC 2 function is only available in the "night mode" of operation where the door is locked via the rod locking.
  • Certified burglar resistance according to resistance class RC2
  • The RC2 function is only available in the "Night" mode of operation, in which the door is locked with rod locking
  • Equipped with a rod locking and reinforced profile components
  • Very quiet running, low-wear direct current drive with a height of only 7 cm
  • Can be networked, and integrated into the building automation via open standard (BACnet)
  • Independent error recognition and recording
Show more
  • Freely configurable inputs and outputs for different functions
  • Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
  • Self-cleaning roller carriage reduces maintenance effort and costs
  • Various mechanical and electrical locks are optionally available
Contact us

Slimdrive SL-RC2

Application Areas

  • Single and double leaf sliding door systems
  • Interior and exterior doors with maximum safety requirements
  • Opening widths of 800 to 3000 mm possible
  • Door leaf weight of up to 120 kg per leaf
  • Suitable profile systems are fine-framed profile systems with ISO and mono glass, in accordance with the RC2 resistance class

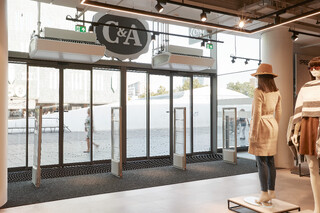

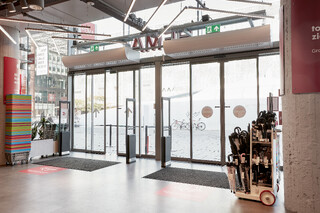

Installation situations in reference objects and videos

Sliding door solutions from GEZE, product video

ECdrive T2, Slimdrive and Powerdrive: Tailored, efficient and open to the demands of tomorrow.

Technical data

Slimdrive SL-RC2
For 1-leaf door systems Yes
For 2-leaf door systems Yes
Fine-framed insulating glass Yes
MONO glass fine-framed Yes
Height 70 mm
Depth 190 mm
Leaf weight (max.) 1-leaf 120 kg
Leaf weight (max.) 2-leaf 120 kg
Opening width 1-leaf 700 mm - 3000 mm
Opening width 2-leaf 900 mm - 3000 mm
Service temperature -15 - 50 °C
IP rating IP20
Disconnection from mains Main switch in the drive
Standard conformity DIN 18650, DIN EN ISO 13849: Performance Level D, EN 16005

Downloads

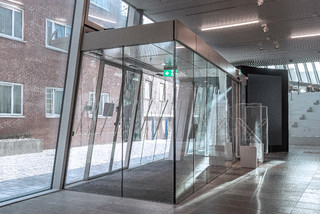

Combination of GEZE Slimdrive SL tilted and Slimdrive SL RC2 in the entrance area of Forum Groningen

LABELLING OBLIGATION:  © Zweitze Korten

Installation situation (1667278)

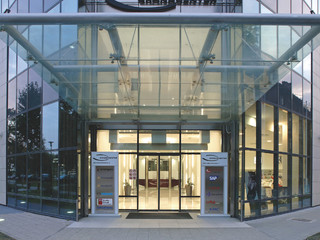

Slimdrive SL RC 2

LABELLING OBLIGATION:  © GEZE GmbH

Product shot (937355)
