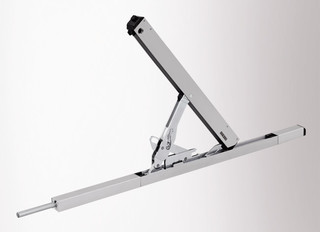

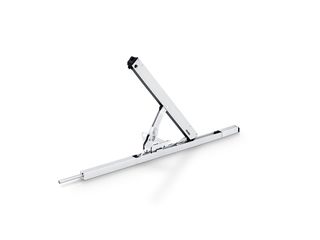

OL 320 Surface-mounted fanlight opener with an opening width of 320 mm
- Achieves the full opening width of 320 mm for all leaf heights
- The opening width can be adjusted
- Little space necessary thanks to flat design of the scissors
- Safety button on the scissors shows scissors engagement in spherical head of leaf bracket
- Integrated leaf locking mechanism in the scissors ensures secure locking
- Scissor unhooking by pressing the release button facilitates window cleaning from inside and outside
- Unhinging inhibitor offers additional safety
- Lock carrier and additional locking mechanisms increase safety and air-tightness
- The scissors and the link arm can be installed from the front
- Leaf bracket fits all overlap heights and materials
Application Areas
- Convenient daily ventilation for rooms and staircases
- For windows with high leaf weights up to max. 250 kg
- Inward opening bottom-hung windows
- Automation by E 212 electric linear drive
- Installation on wooden, plastic or aluminium windows
- Frame installation
Technical data
| OL 320 | |
| Length | 436 mm |
| Depth | 65 mm |
| Height | 26 mm |
| Opening width (max.) | 320 mm |
| Leaf width (min.) | 680 mm |
| Leaf height (min.) | 400 mm |
| Leaf weight (max.) | 250 kg |
| Fitting stroke | 70 mm |
| Adjustable opening width (stroke reduction) | Dependent |
| Leaf locking mechanism integrated in the scissors | Yes |
| Scissor unhooking by release button | Yes |
| Unhinging inhibitor | Yes |

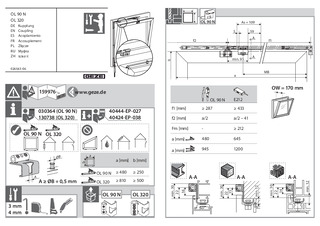

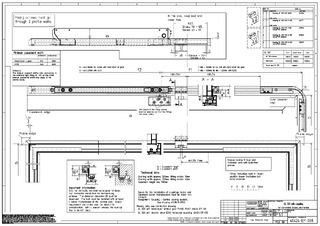

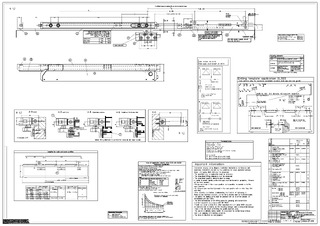

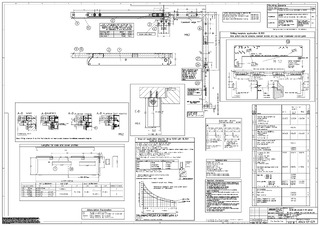

Downloads
