Slimchain Chain drive in an attractive design with numerous possible applications in 24 V version
- Can be integrated perfectly into the façade design thanks to its slim and discreet look
- Continuously adjustable drive stroke and individual speeds for ventilation and smoke and heat extraction
- Available as special version - stroke, cable length, colour and alignment configurable to left hand/right hand door
- Synchronisation of max. four drives without external control unit
- DIP switches for changing the mode of operation (Solo and Syncro, master, slave)

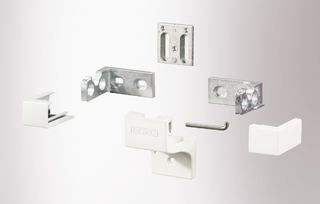

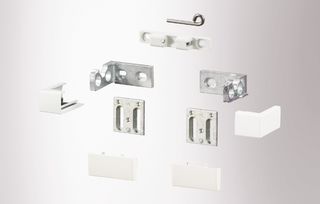

- Fast and easy installation with the Smart fix installation system
- IQ windowdrive - intelligent drive control
- Tested as a natural smoke and heat exhaust ventilation device (SHEV) in accordance with EN 12101-2
Application Areas
- Smoke and heat extraction system and natural ventilation (24 V) in the façade area
- Can be used in exhaust air and fresh air systems
- Inward- and outward-opening windows with bottom-hung, top-hung and side-hung leaves
- Projected top hung and parallel opening windows
- Installation on wooden, PVC or metal windows
- Leaf, frame or integrated installation
- System solution in combination with the Power lock locking drive
Installation situations in reference objects and videos

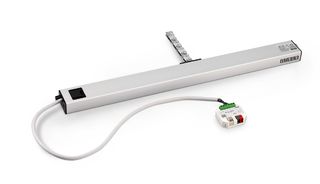

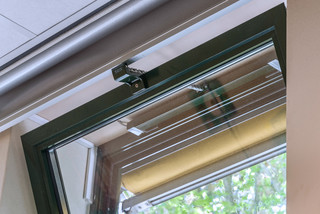

Chain drive Slimchain

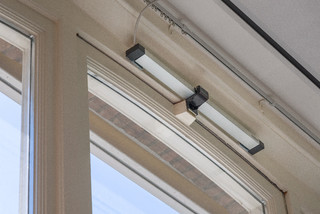

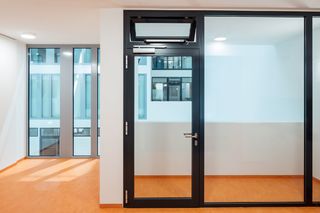

Chain drive Slimchain in an office building © Exorbitart / GEZE GmbH
Ventilation solution at the Praedinius Gymnasium
Automated windows are a user-friendly ventilation solution. The window systems can be flexibly integrated into the building management technology so that the windows open and close automatically at specified times or in certain situations. © Zweitse Korten / GEZE GmbH
Slimchain 24V chain drive

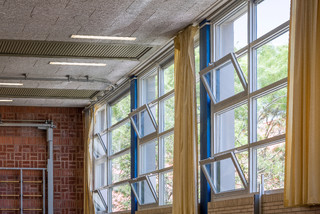

In the Praedinius Gymnasium, the window drives are connected with air quality sensors. For example, the windows are automatically opened if an excessively high CO₂ level is detected in the room. © Zweitse Korten / GEZE GmbH
Chain drive Slimchain 24V
Convenient and user-friendly ventilation solution: In the Praedinius-Gymnasium, the window drives are linked to air quality sensors and open automatically if the air quality drops. © Zweitse Korten / GEZE GmbH
Power lock and Slimchain
Slimchain chain drive in a pleasant design with many applications in combination with Power lock locking drive. © GEZE GmbH
Power lock and Slimchain
Slimchain chain drive in a pleasant design with many applications in combination with Power lock locking drive. © GEZE GmbH
TS 5000 ECline with Slimchain in frame installation, installed in the Leonberg town hall
Overhead door closer with guide rail for barrier-free single leaf doors with opening assistance for easy opening and comfortable passing through the door © Jürgen Pollak / GEZE GmbH

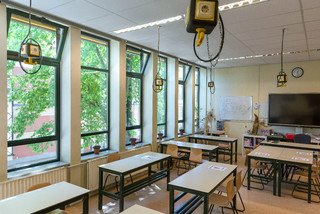

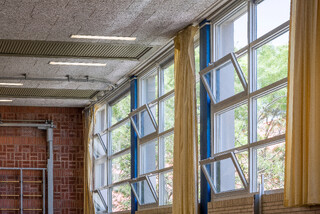

Slimchain 24V window drives at the Praedinius Gymnasium
Fresh air starts with windows that can be opened comfortably. Here, automatic drives are optimally connected to the building management system - complete with electronic control via CO₂, temperature, fire or smoke sensors or via KNX. © Zweitse Korten / GEZE GmbH
Chain drive Slimchain, Power lock locking drive

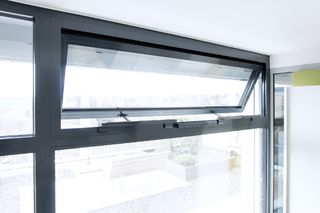

Chain drive in attractive design with numerous possible applications in 24 V version, installed in a residential building © GEZE GmbH
GEZE service case for IQ windowdrive series of GEZE product video
The service case provides everything for the on-site commissioning and testing of window drives from the IQ windowdrive series from GEZE, even without any power connection.

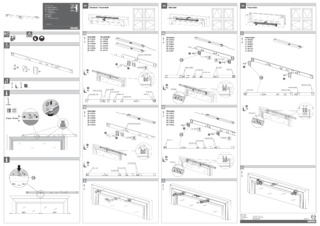

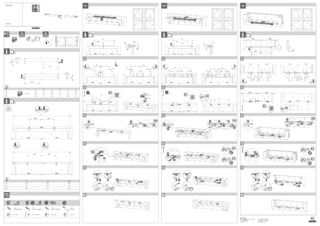

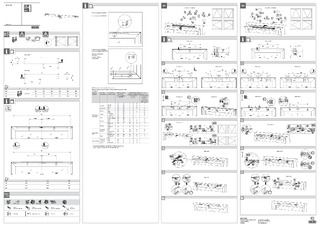

GEZE Slimchain window opener installation video
The GEZE Slimchain electric window opener can be mounted easily and quickly with the GEZE smart fix installation system.
GEZE IQ windowdrives installation video synchronous operation, Powerchain drives
The service case is used to quickly and easily put window drives from the IQ windowdrives series into service and test them without the need for an electrical connection.

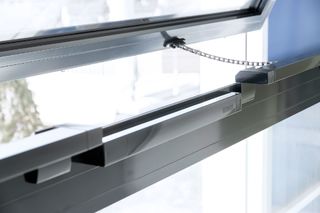

Chain drive Slimchain, installed in an office building
Smoke and heat extraction system and natural ventilation (24 V) in the façade area Can be used in the exhaust and fresh air system © Exorbitart / GEZE GmbH
Chain drive Slimchain with LZR-i100 laser scanner installed in an office building
Chain drive Slimchain with LZR-i100 laser scanners in an attractive design with numerous possible applications © Jürgen Pollak / GEZE GmbH
Safety note
Falling window leaves can be a considerable risk to life and limb of persons in the vicinity. Therefore, the use of GEZE safety scissors is mandatory when using GEZE drives on bottom-hung windows.

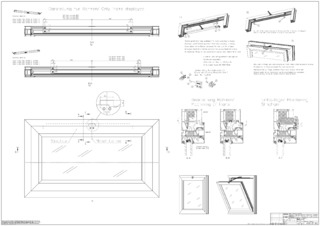

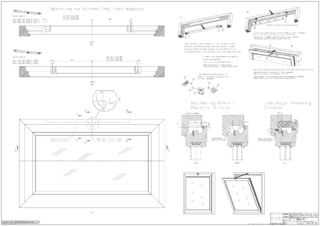

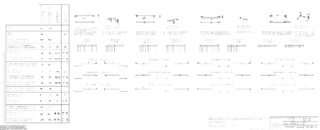

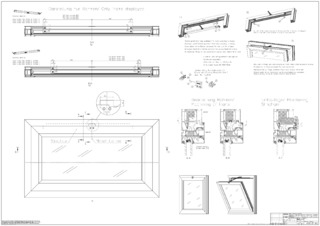

Technical data

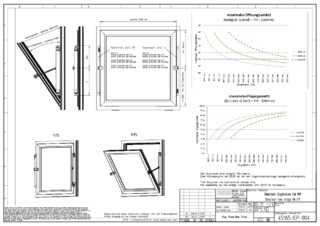

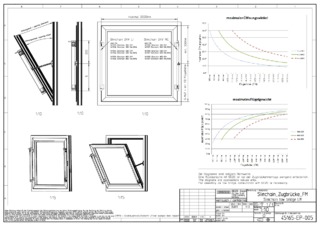

| Slimchain | |
| Dimensions | 25 x 44 mm |
| Space needed on frame (min.) | Frame installation inward-opening: 40 mm, leaf installation inward-opening: 16/21 mm, frame installation outward-opening: 31 mm |
| Space requirement on leaf (min.) | Frame installation inward-opening: 40 mm, leaf installation inward-opening: 34/29 mm, frame installation outward-opening: 19 mm |
| Opening speed RWA | 15 mm/s |
| Opening speed ventilation | 5 mm/s |
| Closing speed (max.) | 5 mm/s |
| Force of pressure (max.) | 100 N (depending on stroke), see force-path chart |
| Holding force (max.) | 2000 N |
| Tensile force | 300 N |
| Leaf weight | 200 kg* |
| Overlap area | 0 - 23 mm (depending on the application and bracket set) |
| Voltage at operation | 24 V ± 25 % |
| Operating voltage | 24 V DC |
| Current consumption | 1.1 A |
| Current consumption according to area of application | Ventilation (24 V): 0.9 A; RWA (18 V): 1.1 A |
| Power consumption | 22 W |
| Duty rating | 30 % |
| Special length of connector cable | 5 m, 7.5 m |
| Min. core cross section | 0.75 mm² |
| Number of cores | 4 cores |
| Service temperature | -5 - 70 °C |
| IP rating | IP40 |
| protection rating | III |
| Syncro function | Yes |
| Adjustable opening speed (ventilation) | Yes |
| Additional locking available | Yes |
| Type of additional locking mechanism | Locking drive |
| Type of stroke shortening | Synchronising unit, Factory setting |
| End position cut-off extended | electronic, via internal path sensor |
| End position cut-off retracted | electronically via current consumption |
| Overload cut-off | Yes |
| Complete opening within 60 s | yes, including locking drive |
| SHEV tested | Yes |
| SHEV additional information | yes, including locking drive |
| Number synchronisation drive units | 4 |
| KNX ability | Yes |
| Bottom-hung window INWARD-opening frame installation | Yes |
| Bottom-hung window INWARD-opening leaf installation | Yes |
| Bottom-hung window OUTWARD-opening frame installation | Yes |
| Side-hung window INWARD-opening frame installation | Yes |
| Side-hung window INWARD-opening door leaf installation | Yes |
| Side-hung window OUTWARD-opening frame installation | Yes |
| Top-hung window INWARD-opening frame installation | Yes |
| Top-hung window OUTWARD-opening frame installation | Yes |
| Projected top-hung window OUTWARD-opening frame installation | Yes |
| Parallel-opening window OUTWARD-opening frame installation | Yes |
