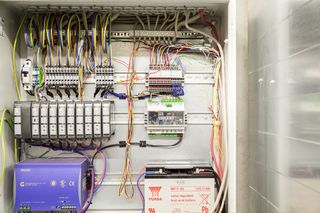

MBZ 300 N24 SHEV control panel for smoke and heat extraction system drives with a total power consumption of 24 A

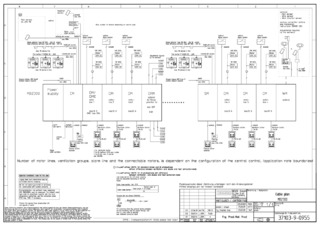

- Modular design to allow flexible adaptation to project-specific requirements
- Convenient extension by clicking on other modules in a control unit
- Can be extended by alarm groups, ventilation groups and alarm lines as required
- Depiction of complex smoke and heat extraction scenarios

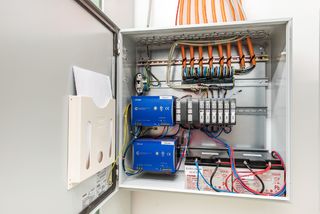

- Simple service and installation thanks to status display directly on the module
- Configuration software simplifies commissioning and configuration
- Wind direction dependent activation possible (SHEV according to EN 12101-2)
- Safety and reliability confirmed by VdS certification
Application Areas
- Connecting possibilities for medium-size smoke and heat extraction solutions, including with complex demands
- For smoke and heat extraction system drives with a total power consumption of 24 A
- Control of electromotive 24 V drives for smoke and heat extraction in the event of a fire
- Control of a controlled natural ventilation
Technical data
| MBZ 300 N24 | |
| Dimensions | 600 x 600 x 250 mm |
| Width | 600 mm |
| Height | 600 mm |
| Depth | 250 mm |
| Material | Sheeting |
| Colour | grey RAL 7035 |
| IP rating | IP30 |
| Service temperature | -5 - 40 °C |
| Operating voltage | 230 V AC |
| Power consumption (max.) | 480 W |
| Connection cross-section / mains | 2.5 mm² |
| Output voltage | 24 V DC +/-15% |
| Residual ripple | 2 % |
| Output current (max.) | 24 A |
| Duty rating with maximum output current | 30 % |
| Battery capacity | 17 Ah |
| Alarm groups | 1 |
| Vent groups | 3 Stk. |
| Networking of several control units | connection with optional CAN Bus modules |
| Signal outputs available | 1 status contact per CM/SM, 6 signal contacts per ERM for which parameters can be set |
| Parameter setting of control units | via USB interface an PC software |
| Standard conformity | EN 12101-10, ISO 21927-9 |
| Approvals | VdS |
